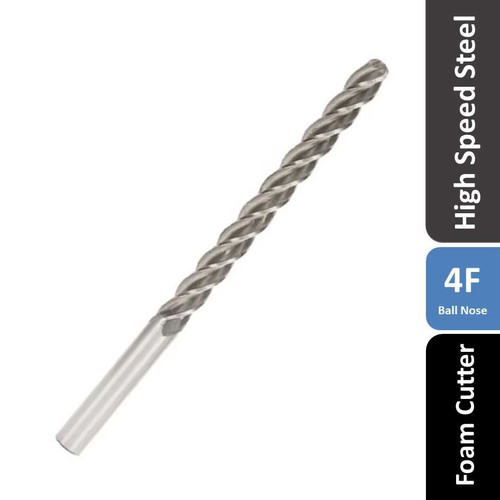

Extra long XPS Styrofoam cutters are spiral ball nose HSS bits built for one job — carving thick foam cleanly and fast. The extended reach lets you cut deep into XPS and EPS foam blocks in a single setup, so large 3D carvings, thick insulation board and full foam blanks can be shaped without running out of tool length. The rounded ball-nose tip glides through smooth contours and sculpted surfaces, blending 3D toolpaths without the facets or steps a flat cutter leaves behind.
These are made from HSS (high speed steel) rather than carbide, and for soft foam that’s the right choice. HSS takes and holds a very keen edge, which is exactly what foam needs to shear cleanly instead of tearing or crumbling — and because it’s far tougher and less brittle than carbide, it stands up to the leverage of an extra-long reach without the snapping risk a long, thin carbide bit carries. The spiral up-cut geometry pulls foam shavings and beads up and out of the cut, keeping deep passes clear so nothing packs or drags as you carve.
Suitable for
- XPS (extruded) and EPS (expanded) polystyrene foam, and Styrofoam board
- Polyurethane modelling / tooling foam and other soft carving foams
- 3D foam work — signage and letters, props and cosplay, terrain and models, architectural forms, moulds and plugs, insulation
Not ideal for
- Hard materials — timber, MDF, plastics and metals; HSS and this foam-tuned geometry will dull and overheat in anything harder
- Plastics prone to melting — the heat generated will gum acrylic and similar; use a dedicated plastics bit instead
- Flat-bottomed pockets or crisp flat detail — a ball nose leaves a scalloped floor; use a flat end mill where you need a square base
Adam’s Tips
Foam carves quickly, so you can push high feed rates — but keep the RPM moderate. Too much speed or dwell builds heat, and XPS/EPS will melt and gum rather than cut. Aim to shear clean shavings, not powder or melt.
With an extra-long bit, respect the reach. A long tool deflects and can chatter or whip under heavy sideways load, so ease off the lateral engagement, use the shortest length that still reaches the bottom of your cut, and keep RPM sensible — especially on the thinner, longer sizes. For big 3D carvings, run a roughing pass first and leave a light finishing pass, and set your ball-nose stepover to trade surface smoothness against cut time (smaller stepover = fewer scallops, longer job).
Two practical notes for foam: hold-down and dust. Foam is extremely light, so pin, tape or vacuum it down firmly so it can’t lift or shift. And foam carving makes a huge amount of static-clinging dust and beads — run good dust extraction (a dust shoe helps), and expect some clean-up.
