Product Specifications

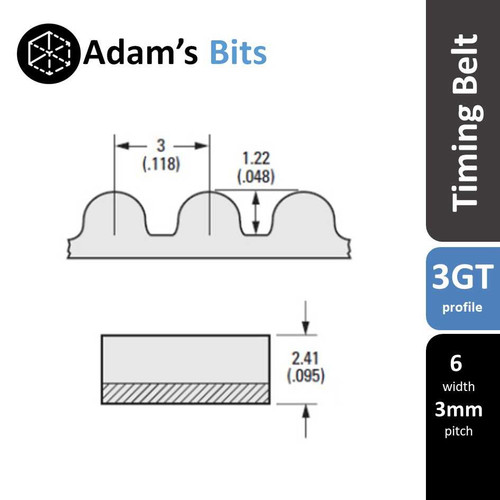

- 3GT / GT3 (GT3-3M)
- Single Sided Belt
- Length: Open ended sold by meter, 1.2m to suit 1m and 1.7m to suit 1.5m CNC rail
- Pitch: 3mm
- Belt Width: 6mm
- Tension Member: Fiberglass
- Color: Black
1m lengths are cut to total qty so qty5 = 5m. 1.2m and 1.7m lengths are cut to each length and you will receive per given length so qty5 of 1.2m = 5 x 1.2m
Best for
- Replacement 3GT (GT3-3M) belts: 3mm pitch, 6mm wide, fibreglass reinforced
- BlueCarve and similar CNCs on 1m or 1.5m rails (1.2m and 1.7m lengths)
- Custom lengths: 1m pieces are supplied as one continuous length (qty 5 = 5m)
Not for
- 2GT or HTD belts: check the tooth profile and pitch before ordering
Adam's Tip
Tension both sides of a gantry evenly. A loose belt loses steps and shows as ripples on curves, while an over-tight belt wears the motor bearings.
3 Reviews Hide Reviews Show Reviews
-
High quality
Belts last for years High quality
-
Belt for Bluey
Always good to have some spares on hand so if anything happens, you can change it over and get back on track
-
Timing belts1
The service was fantastic and arrived faster than I was expecting
